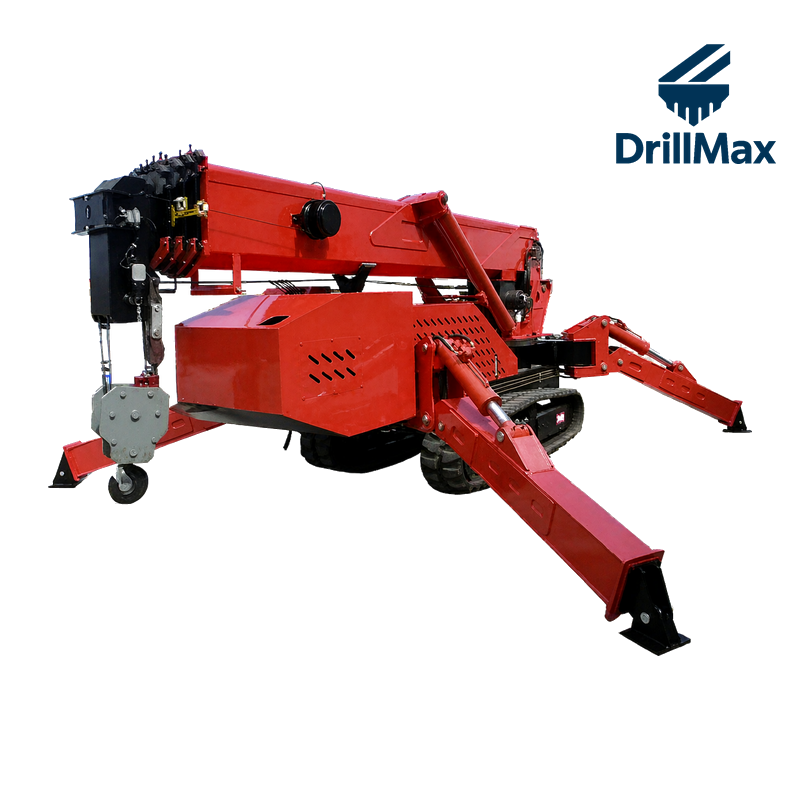

5 T Spider Crane
Aerial handling
5-ton spider crane with a 5-segment U-shaped boom, 16.8 m ground lift and hydraulic walking for versatile lifting on difficult terrain.
- Maximum Work Radius14 m x 0.5 t
- Maximum Ground Lift16.8 m
- Maximum Underground Head20.5 m
- Hook Lifting Speed12 m/min (4 ropes)
- Steel Wire Ropedia 11 mm x 80 m
- Crane Arm Form5-segment boom, U-shaped
Technical Specifications
| Maximum Work Radius | 14 m x 0.5 t |
| Maximum Ground Lift | 16.8 m |
| Maximum Underground Head | 20.5 m |
| Hook Lifting Speed | 12 m/min (4 ropes) |
| Steel Wire Rope | dia 11 mm x 80 m |
| Crane Arm Form | 5-segment boom, U-shaped |
| Telescopic Arm Length | 4.7-16.5 m |
| Boom Angle / Time | 0-360 deg (continuous) / 60 s |
| Max Extension Amplitude | L/R 7800, F/R 3600 mm |
| Leg Movement | Manual rotation + hydraulic telescopic + auto support (2 legs) |
| Walking Mode | Hydraulic motor drive |
| Walking Speed | 0-2.5 km/h |
| Climbing Ability | 25 deg (36%) |
| Engine Brand | In-cloud |
| Start Method | Electric start |
| Start Environment | -5 deg C ~ 40 deg C |
| Fuel | Diesel |
| Battery | 12 V 45 Ah |
| Vehicle Size | 5.0×1.45×1.98 m |
| Dead Weight | 6200 kg |
| Track Size | 2600×400 mm |
Specifications can be customized for special requirements. Contact our engineers for drawings and a quotation.
