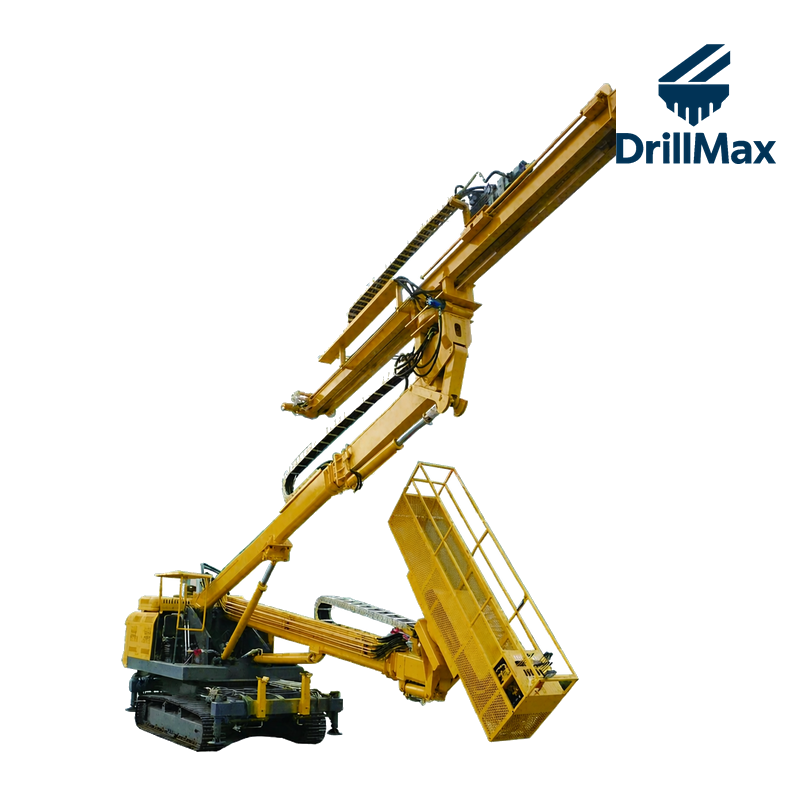

Tunnel Drilling Rig
Tunnel & underground
An advanced drilling unit for tunnel and underground works, with compact structure and flexible operation, suitable for pipe-shed support and bolting in tunnels.
- PowerWeifang 4108 Supercharged Engine
- Power Head ModelHydraulic Motors
- Main PumpDouble pump
- Vehicle Size9500x2300x2500 mm
- Track Shoe Width400 mm
- Up-down Steering360 deg rotation
Technical Specifications
| Parameter | XC6/8 (single arm) | XC6/8 (dual arm) |
|---|---|---|
| Power | Weifang 4108 Supercharged Engine | Weifang 4108 Supercharged Engine |
| Power Head Model | Hydraulic Motors | Hydraulic Motors |
| Main Pump | Double pump | Double pump |
| Vehicle Size | 9500x2300x2500 mm | 9500x2300x2500 mm |
| Track Shoe Width | 400 mm | 400 mm |
| Up-down Steering | 360 deg rotation | 360 deg rotation |
| Boom | Single arm 1/2 sections | Double boom 1/2 sections |
| Electrical Machinery | 22 kW | 22 kW |
| Gearbox Torque | 8000 N.m | 8000 N.m |
| Drilling Angle | Flat / inclined / vertical hole | Flat / inclined / vertical hole |
| Oil Pump | 40/40/32 | 40/40/32 |
| Drilling Diameter | 0-300 mm | 0-300 mm |
| Chain Pressurization | Travel 4 m slide frame | Travel 4 m slide frame |
| Leg | Two hydraulic support legs | Two hydraulic support legs |
| Dead-weight | 10 t | 11 t |
Specifications can be customized for special requirements. Contact our engineers for drawings and a quotation.
