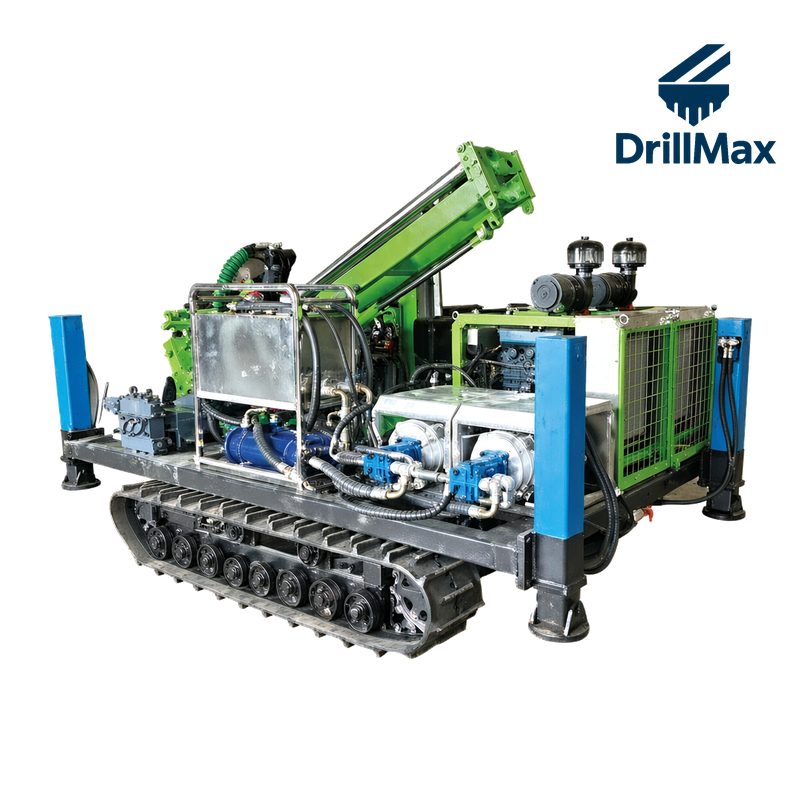

DM-600SH Split-type Full Hydraulic Drilling Rig
Full-hydraulic portable core drilling rig — drilling depth up to 700 (BTW). Modular, reliable and built for exploration sites.
Request a Quote Download PDF
Key Features
- Split power unit — separate hydraulic station for safer, more flexible site layout
- Top-drive hydraulic power head with stepless speed & thrust control
- Wire-line core drilling (BTW / NTW / HTW) for high core recovery
- Skid-mountable modular design for fast mobilization
- Diesel or diesel-electric power options
Specifications
| General | |
|---|---|
| Drilling depth (BTW / NTW / HTW) | 700 / 500 / 300 m |
| Drill pipe (core barrel) | HQ / NTW / BTW |
| Axial thrust | 2,600 kg |
| Power Head | |
| Maximum pull force | 20,000 kg |
| Full thrust force | 10,000 kg |
| Maximum stroke | 1,800 mm |
| Length | 2,100 mm |
| Gripper | |
| Mode of operation | Hydraulic clamping & release |
| Max. clamp size | 115 mm |
| Power Unit | |
| Engine | 2× diesel 49.2 kW (2600 rpm) + 2× motor 23 kW (1400 rpm) |
| Main pump | 32+32 ml, 26 MPa |
| Tail pump | 25+8 ml, 26 MPa |
| Hydraulic tank capacity | 98 L |
| Cooling method | Hydro cooling |
