TCD-20
Pneumatic Breakers & Picks
Weight: 10.0 kg
Air consumption: 1.1 m³/min
Bit head: R26 × 80 mm
Air consumption: 1.1 m³/min
Bit head: R26 × 80 mm

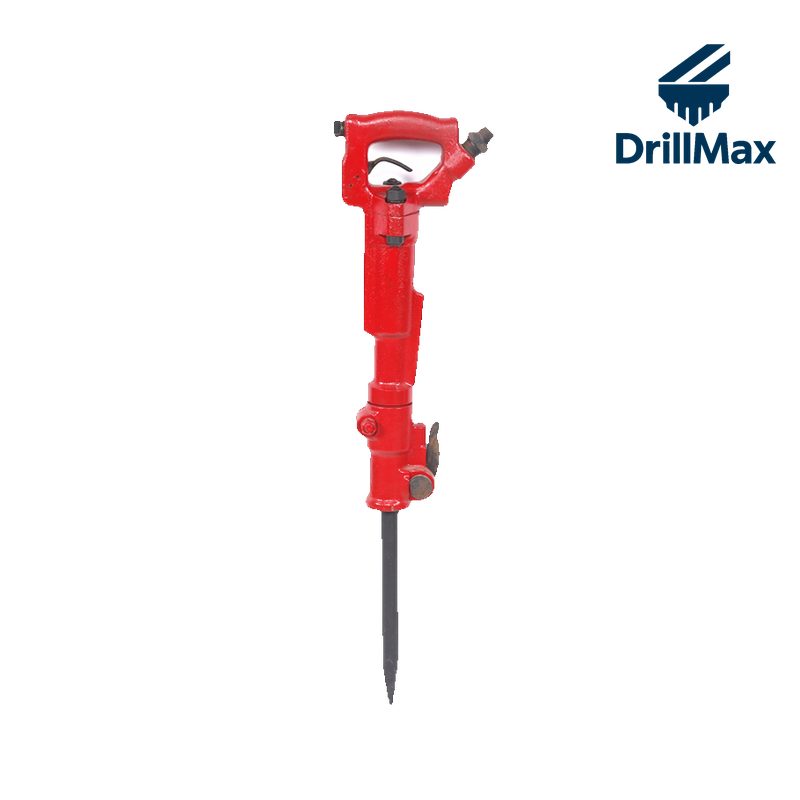

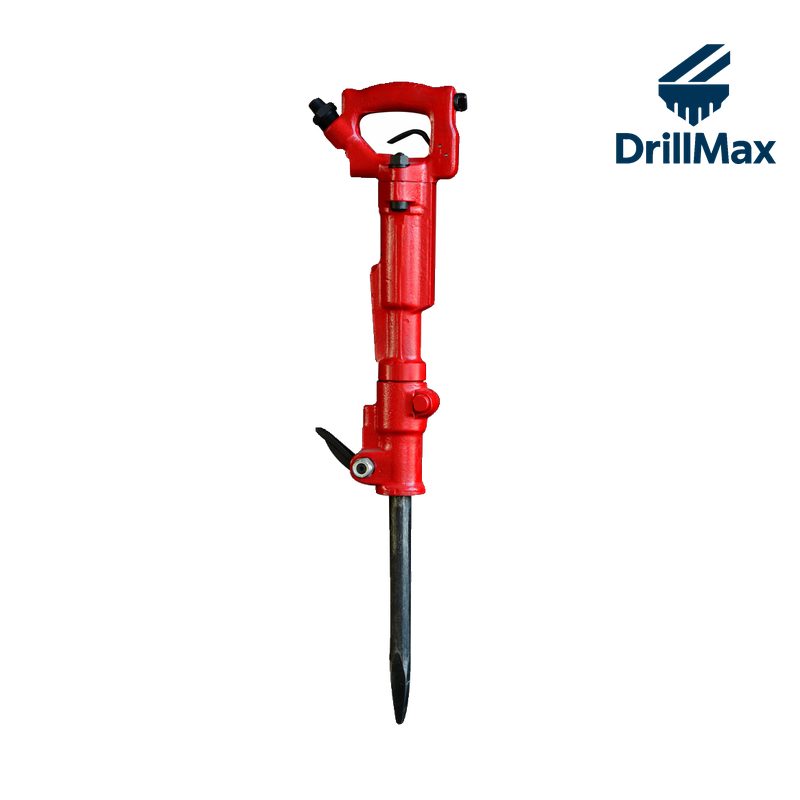

TCD-20 air pick adopts Japan TOKU technology. Driven by compressed air, it is light weight, small size, high blow energy and high frequency, suitable for confined space operations.
Weight
Net weight 10.0 kg (22.0 lb)
Impact
Impact frequency 2000 b.p.m
Air
Air consumption 1.1 m³/min
Specifications
| Parameter | Metric | U.S. |
|---|---|---|
| General | ||
| Weight | 10.0 kg | 22.0 lb |
| Length | 520 mm | 20.5 in |
| Working Air Pressure | — | — |
| Piston & impact | ||
| Cylinder Diameter | — | — |
| Piston Diameter | 42.85 mm | 1.69 in |
| Piston Stroke | 60 mm | 2.36 in |
| Percussive Frequency | 2000 b.p.m | 2000 b.p.m |
| Percussive Energy | — | — |
| Percussive Power | — | — |
| Breaking | ||
| Bit Head Size | R26 × 80 mm | R26 × 80 mm |
| Air system | ||
| Air Consumption | 1.1 m³/min | 1.1 m³/min |
| Air Inlet Size | — | — |
| Air Tube Inner Diameter | 19 mm | 0.75 in |
| Bit Fixation Style | — | — |
| Oil Feeder | — | — |
