DM-800WD

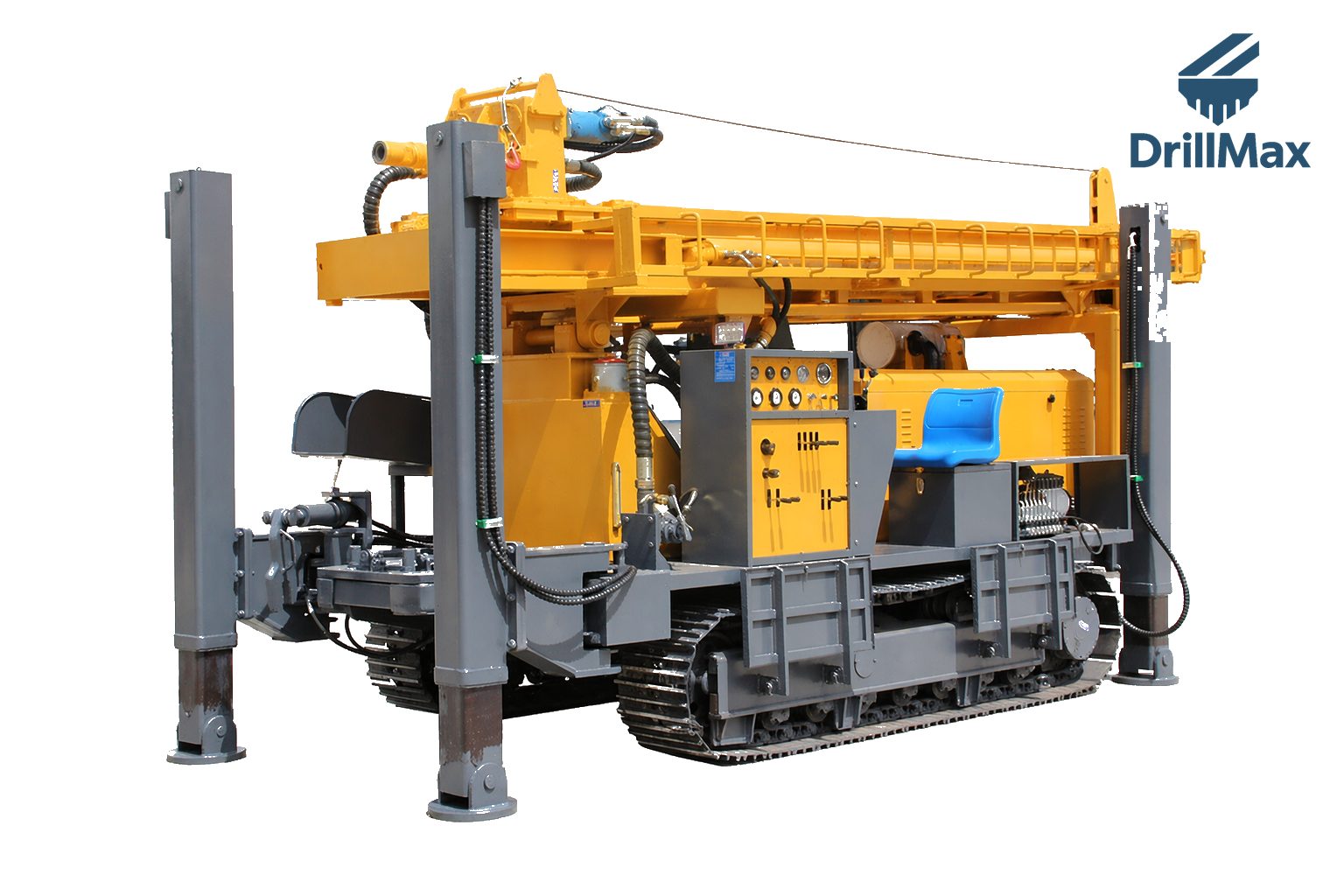

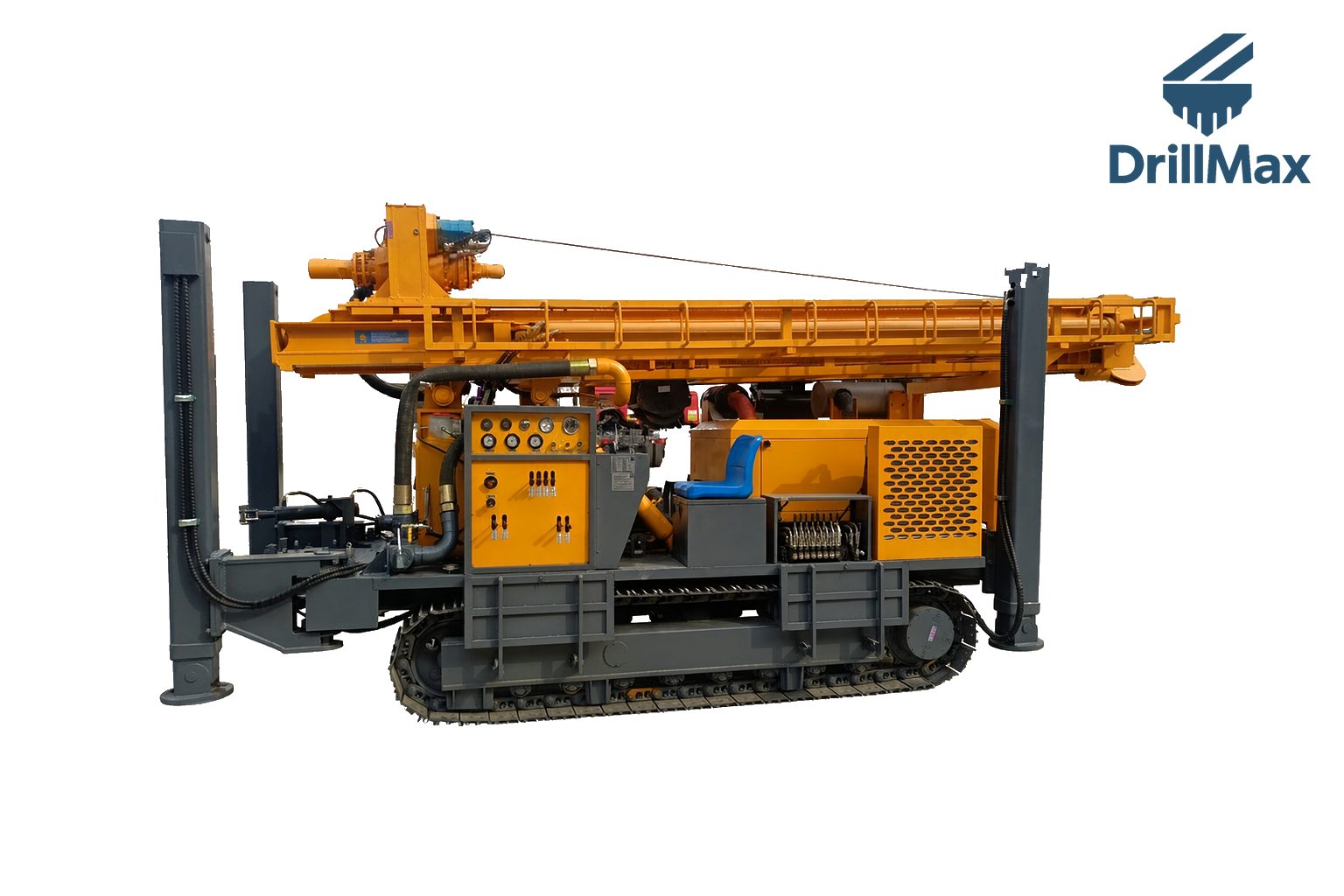

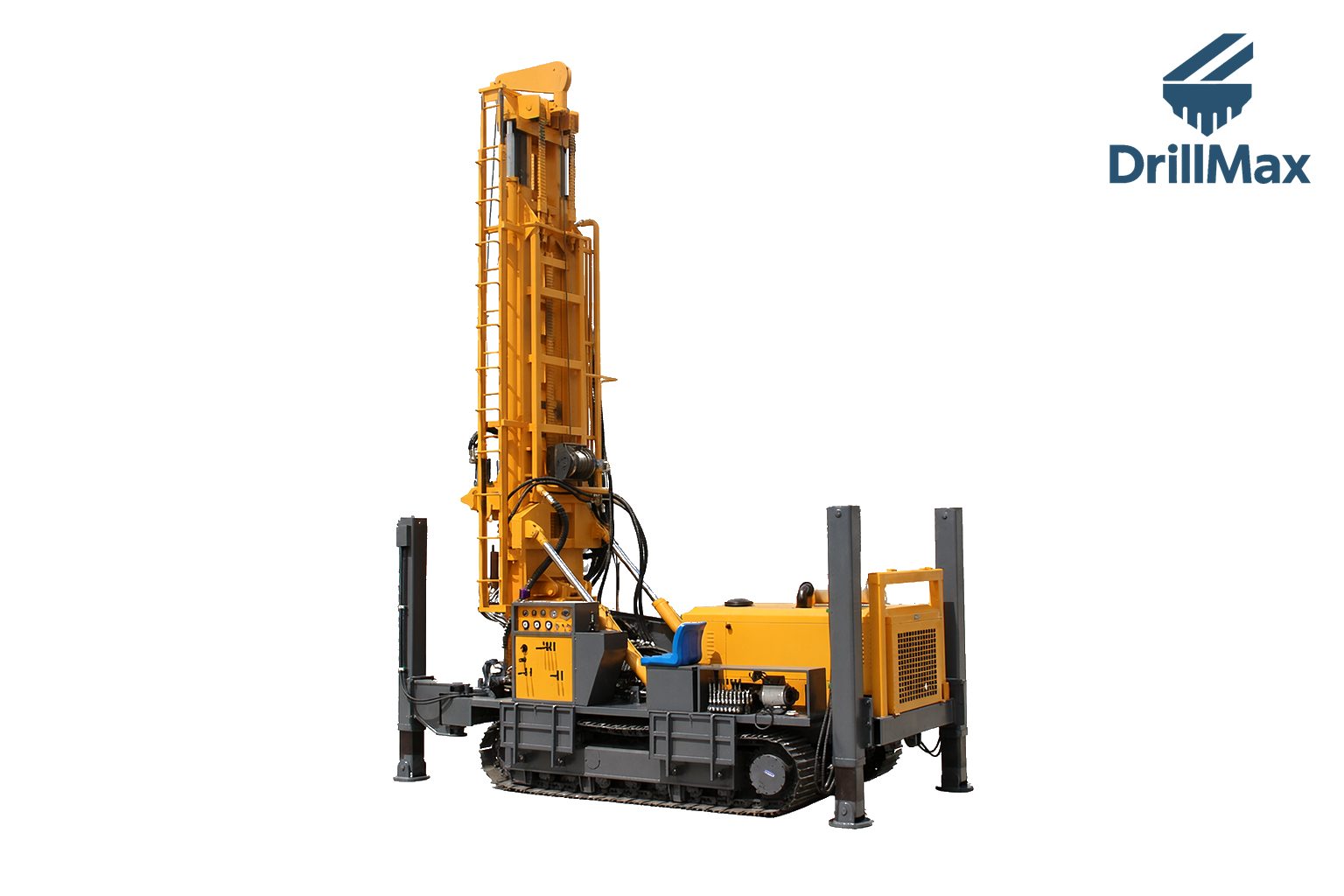

Pneumatic water well drill rig — drill depth 800 m, 153 kW, working air pressure 1.7-3.5 MPa.
Drill depth: 800 m
Weight: 13 T
Engine: Cummins 153 kW
Weight: 13 T
Engine: Cummins 153 kW
Depth
Drilling depth up to 800 m (2625 ft)
Power
Cummins 153 kW (205 hp) engine
Air
Working air pressure 1.7-3.5 MPa (247-508 psi)
Specifications
| Parameter | Metric | U.S. |
|---|---|---|
| Drilling capacity | ||
| Drill Depth | 800 m | 2625 ft |
| Hole Diameter | 140-400 mm | 5.51-15.7 in |
| Drill Pipe Diameter | Φ102Φ108Φ114 mm | Φ4.02Φ4.25Φ4.49 in |
| Drill Pipe Length | 1.5/2.0/3.0/6.0 m | 4.92/6.56/9.84/19.7 ft |
| One-time Advance Length | 6.6 m | 21.7 ft |
| Power & rotation | ||
| Engine Brand | Cummins | Cummins |
| Engine Power | 153 kW | 205 hp |
| Swing Torque | 8850-13150 N.m | 6527-9699 lbf·ft |
| Swing Speed | 45-140 rpm | 45-140 rpm |
| Feed & mobility | ||
| Rig Lifting Force | 30 T | 66139 lb |
| Winch Hoisting Force | 2 T | 4409 lb |
| Fast Feed Speed | 40 m/min | 131 ft/min |
| Rapid Rise Speed | 20 m/min | 65.6 ft/min |
| Travel Speed | 2.5 km/h | 1.55 mph |
| Gradeability | 30 ° | 30 ° |
| Penetration Rate | 15-35 m/h | 49.2-115 ft/h |
| Air system | ||
| Working Air Pressure | 1.7-3.5 MPa | 247-508 psi |
| Air Consumption | 17-42 m3/min | 600-1483 cfm |
| Dimensions & weight | ||
| Weight | 13 T | 28660 lb |
| Loading Width | 2.95 m | 9.68 ft |
| High-leg Stroke | 1.7 m | 5.58 ft |
| Dimensions | 6300*2300*2950 mm | 248*90.6*116 in |
