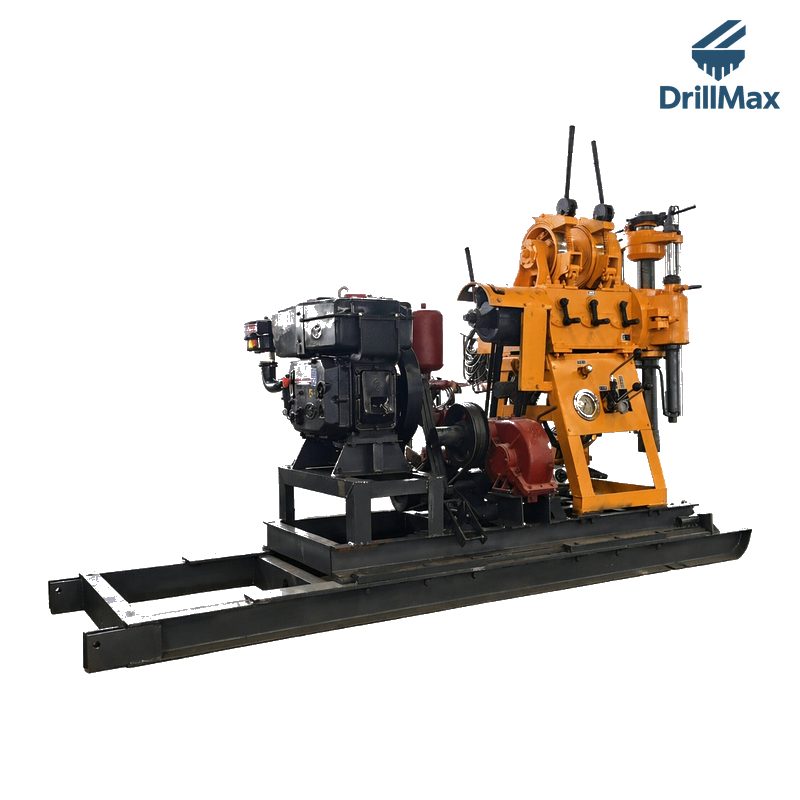

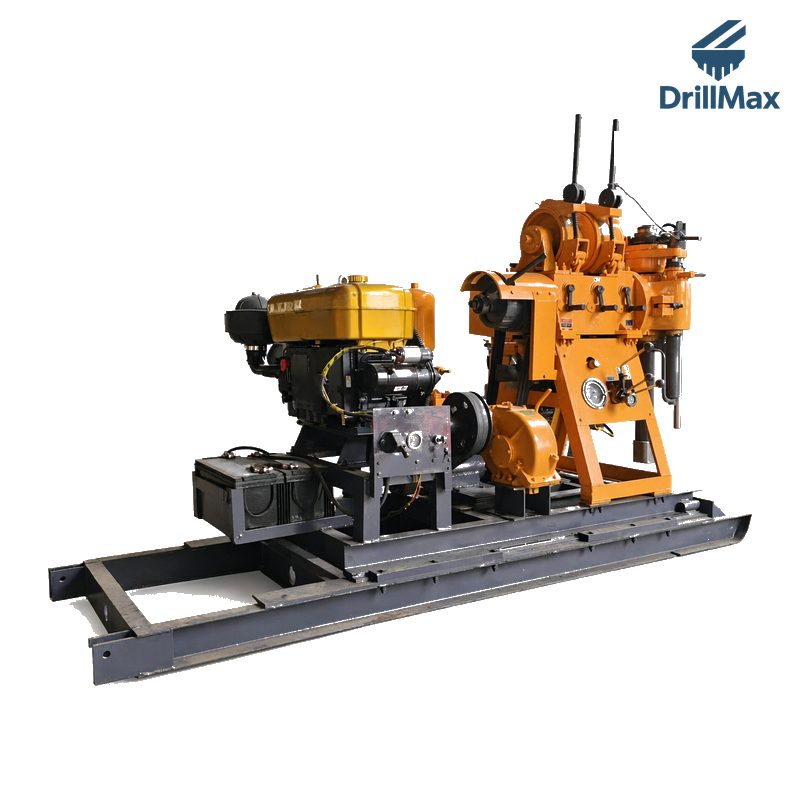

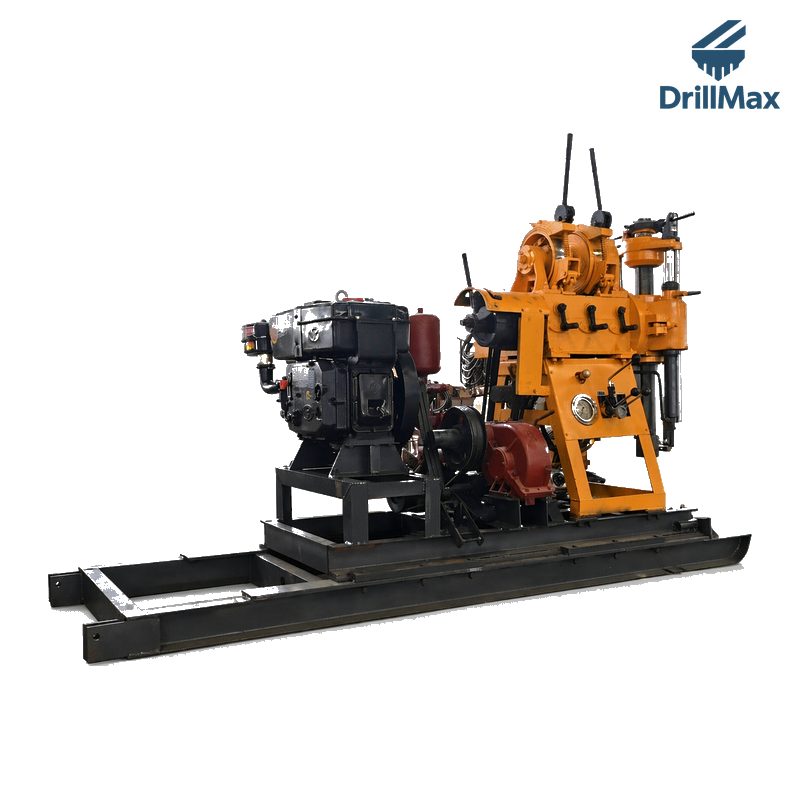

XY-200
Geological and prospecting core drilling rig for mineral exploration, water-well and engineering boring.
Depth: 200m
Diameter: 300mm
Weight: 1200kg
Diameter: 300mm
Weight: 1200kg
Drilling depth
Up to 200m (656 ft)
Hole range
75mm–300mm
Weight
1200kg (2646 lb)
Power
柴油机/电机 22HP/15KW (29.5 / 20.1 hp)
Specifications
| Parameter | Metric | U.S. |
|---|---|---|
| General | ||
| Drilling depth | 200m | 656 ft |
| Drilling diameter | 300mm | 11.8 in |
| Final hole diameter | 75mm | 2.95 in |
| Drilling angle | 90°～75° | — |
| Weight | 1200kg | 2646 lb |
| Overall dimensions (L×W×H) | — | — |
| Spindle | ||
| Spindle speed | 64 128 287 557 r/min | — |
| Spindle stroke | 450mm | 17.7 in |
| Spindle lifting capacity | — | — |
| Hoist | ||
| Single rope lifting capacity | 2400kg | 5291 lb |
| Wire rope diameter | 13mm | 0.51 in |
| Wire rope capacity | 35m | — |
| Mud pump | ||
| Model | — | — |
| Flow rate | — | — |
| Pressure | 3Mpa | — |
| Power unit | ||
| Diesel engine | 柴油机/电机 22HP/15KW | 29.5 / 20.1 hp |
| Electric motor | — | — |
