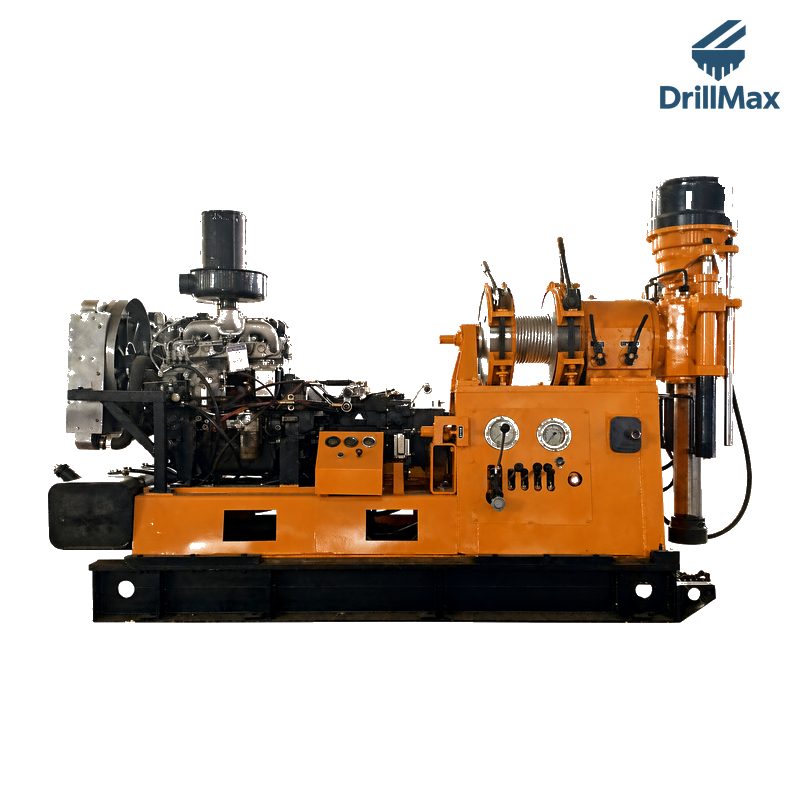

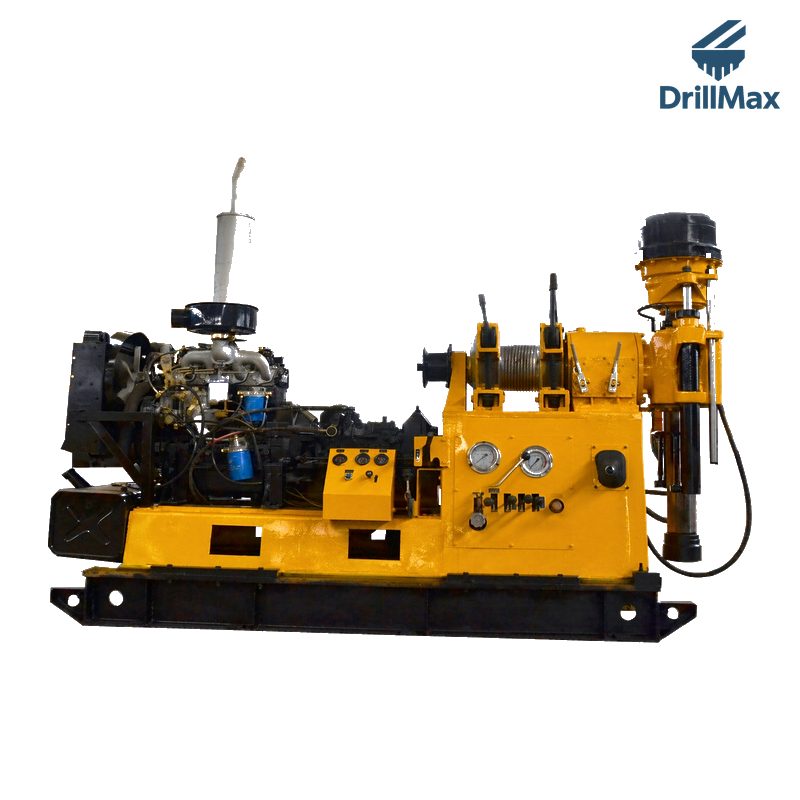

XY-3
Geological and prospecting core drilling rig for mineral exploration, water-well and engineering boring.
Depth: 600m
Diameter: 300mm
Weight: 1800kg
Diameter: 300mm
Weight: 1800kg
Drilling depth
Up to 600m (1969 ft)
Hole range
75mm–300mm
Weight
1800kg (3968 lb)
Power
39KW (52.3 hp)
Specifications
| Parameter | Metric | U.S. |
|---|---|---|
| General | ||
| Drilling depth | 600m | 1969 ft |
| Drilling diameter | 300mm | 11.8 in |
| Final hole diameter | 75mm | 2.95 in |
| Drilling angle | 90°–65° | — |
| Weight | 1800kg | 3968 lb |
| Overall dimensions (L×W×H) | 2500×900×1800mm | 98.4 / 35.4 / 70.9 |
| Spindle | ||
| Spindle speed | 30-1050r/min | — |
| Spindle stroke | 600mm | 23.6 in |
| Spindle lifting capacity | 6000kg | 13228 lb |
| Hoist | ||
| Single rope lifting capacity | — | — |
| Wire rope diameter | 12.5mm | 0.49 in |
| Wire rope capacity | 50m | — |
| Mud pump | ||
| Model | 卧式三缸 BW-250 | — |
| Flow rate | — | — |
| Pressure | 80kgcm² | — |
| Power unit | ||
| Diesel engine | 39KW | 52.3 hp |
| Electric motor | 22KW | 29.5 hp |
