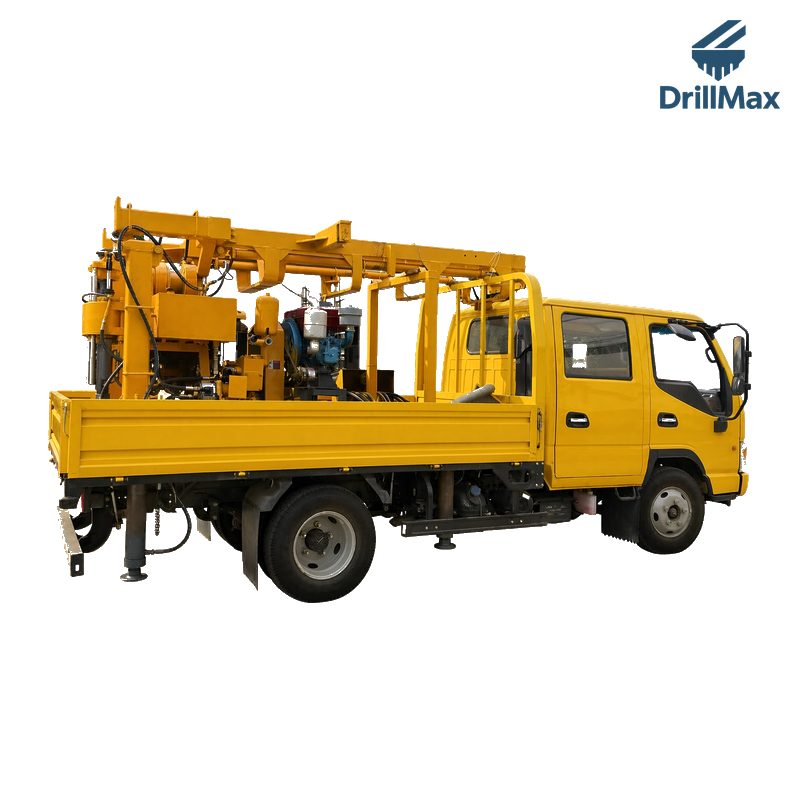

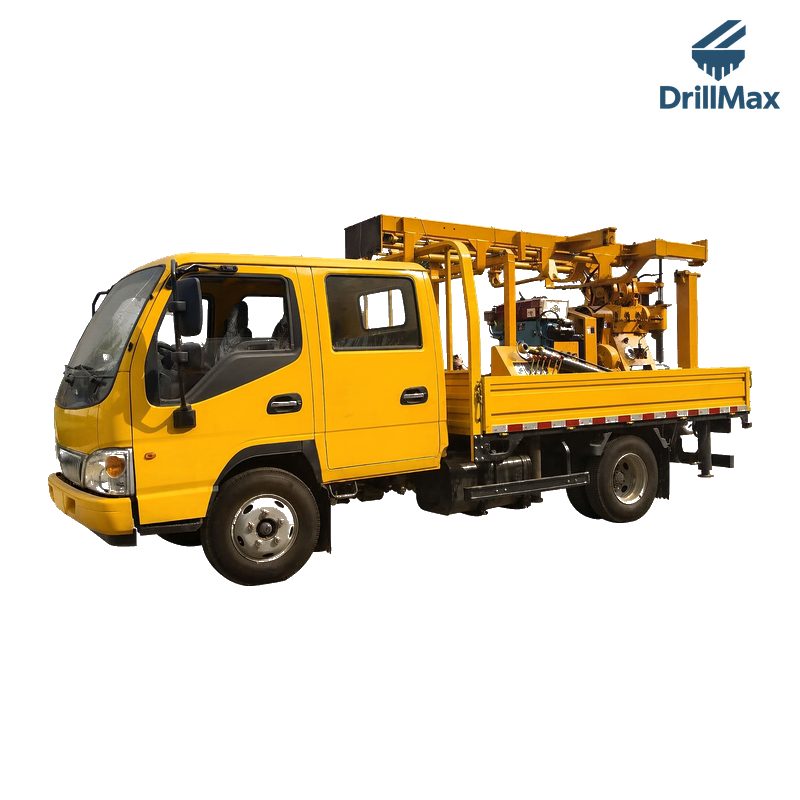

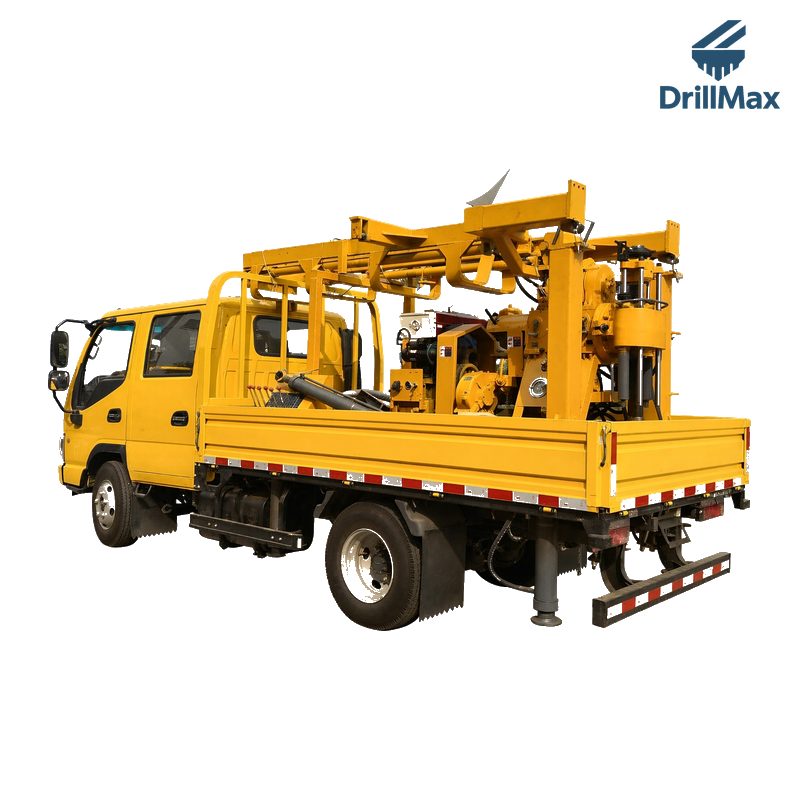

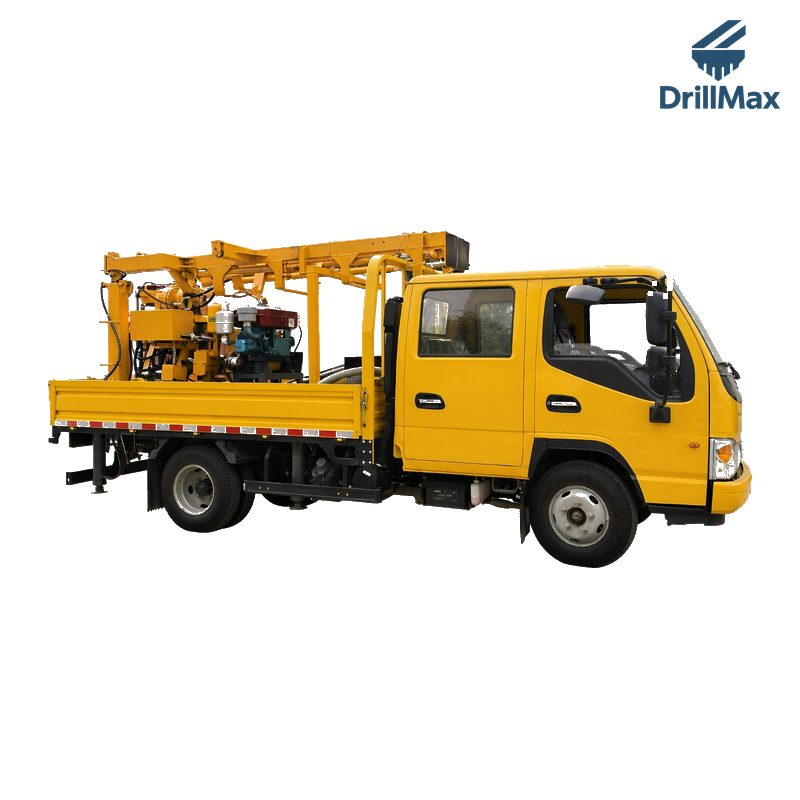

XYC-200
Geological and prospecting core drilling rig for mineral exploration, water-well and engineering boring.
Depth: 30-200 m
Diameter: 300-75
Weight: 1150kg
Diameter: 300-75
Weight: 1150kg
Drilling depth
Up to 30-200 m (98.4 / -656 ft)
Hole range
300-75
Weight
1150kg (2535 lb)
Power
16.2kw/2200rpm (21.7 / 2950 hp)
Specifications
| Parameter | Metric | U.S. |
|---|---|---|
| General | ||
| Drilling depth | 30-200 m | 98.4 / -656 ft |
| Drilling diameter | 300-75 | 11.8 / -2.95 in |
| Final hole diameter | — | — |
| Drilling angle | 90-75 | — |
| Weight | 1150kg | 2535 lb |
| Overall dimensions (L×W×H) | 1110*725*965 mm | 43.7 / 28.5 / 38.0 |
| Spindle | ||
| Spindle speed | 64、128、287、557 | — |
| Spindle stroke | 450 | 17.7 in |
| Spindle lifting capacity | — | — |
| Hoist | ||
| Single rope lifting capacity | — | — |
| Wire rope diameter | 12.5 | 0.49 in |
| Wire rope capacity | 35 | — |
| Drill tower | ||
| Tower height | 7000 | 276 in |
| Mud pump | ||
| Model | ZS1115柴油发动机 | — |
| Flow rate | 160 | — |
| Pressure | 1.3 | — |
| Power unit | ||
| Diesel engine | 16.2kw/2200rpm | 21.7 / 2950 hp |
| Electric motor | — | — |
