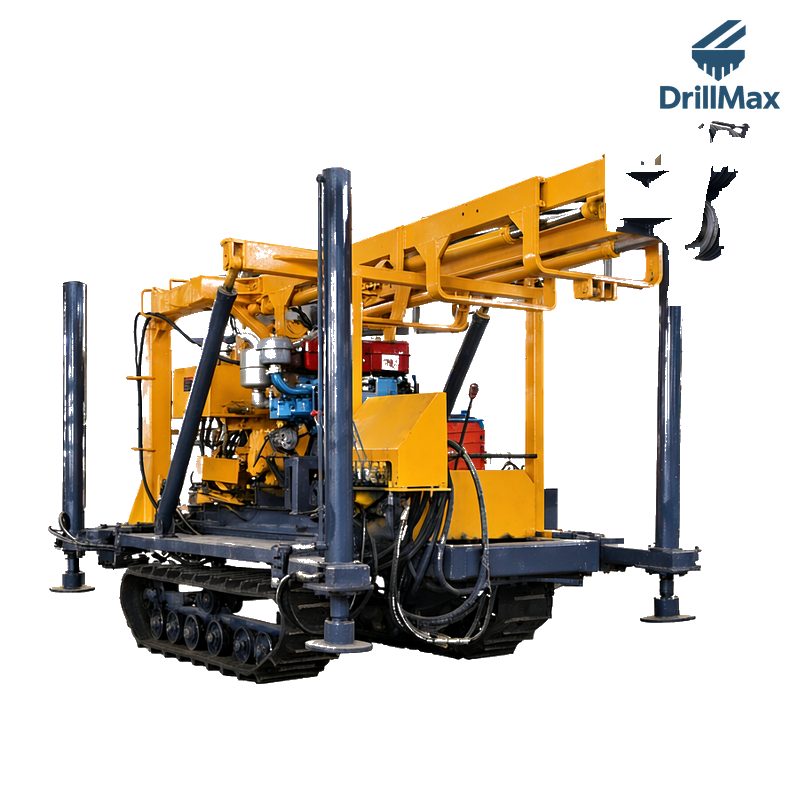

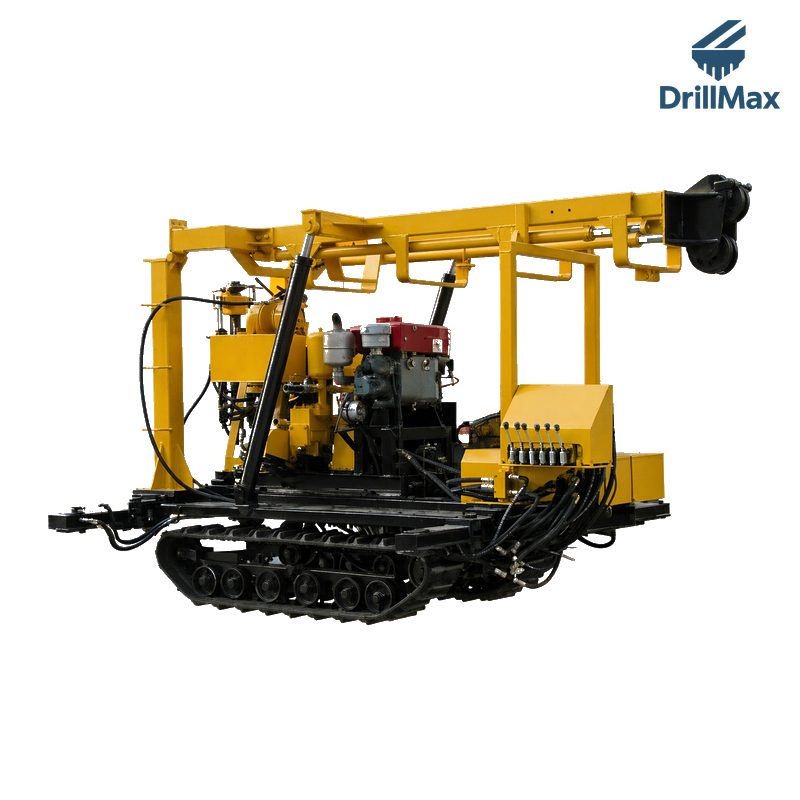

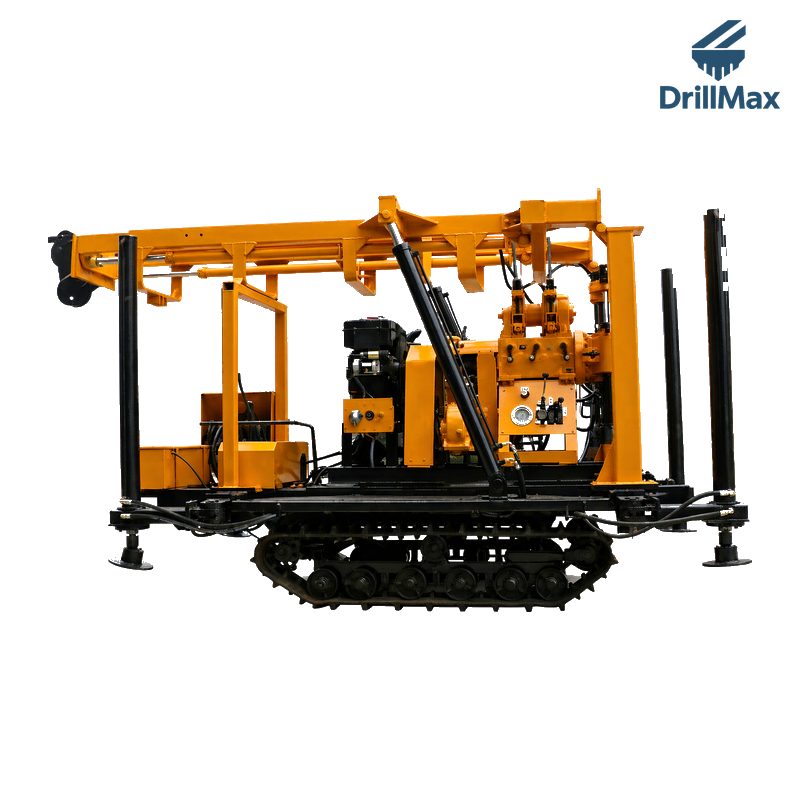

XYD-130
Geological and prospecting core drilling rig for mineral exploration, water-well and engineering boring.
Depth: 130m
Diameter: 75-220mm
Weight: 2600kg
Diameter: 75-220mm
Weight: 2600kg
Drilling depth
Up to 130m (427 ft)
Hole range
75mm–75-220mm
Weight
2600kg (5732 lb)
Specifications
| Parameter | Metric | U.S. |
|---|---|---|
| General | ||
| Drilling depth | 130m | 427 ft |
| Drilling diameter | 75-220mm | 2.95 / -8.66 in |
| Final hole diameter | 75mm | 2.95 in |
| Drilling angle | 90°～75° | — |
| Weight | 2600kg | 5732 lb |
| Overall dimensions (L×W×H) | — | — |
| Spindle | ||
| Spindle speed | 142 285 570r/min | — |
| Spindle stroke | 450mm | 17.7 in |
| Spindle lifting capacity | 1600kg | 3527 lb |
| Hoist | ||
| Single rope lifting capacity | 1600kg | 3527 lb |
| Wire rope diameter | 13mm | 0.51 in |
| Wire rope capacity | — | — |
| Mud pump | ||
| Model | — | — |
| Flow rate | — | — |
| Pressure | 0.7Mpa | — |
| Power unit | ||
| Diesel engine | — | — |
| Electric motor | — | — |
