TCA-7
Pneumatic Breakers & Picks
Weight: 7.2 kg
Air consumption: 1.0 m³/min
Bit head: R26 × 80 mm
Air consumption: 1.0 m³/min
Bit head: R26 × 80 mm

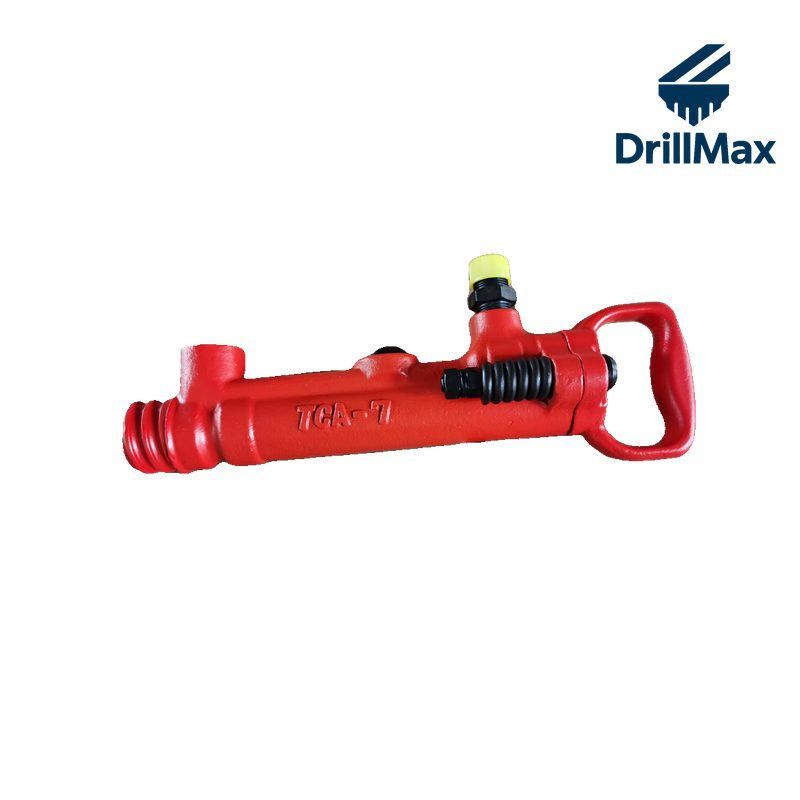

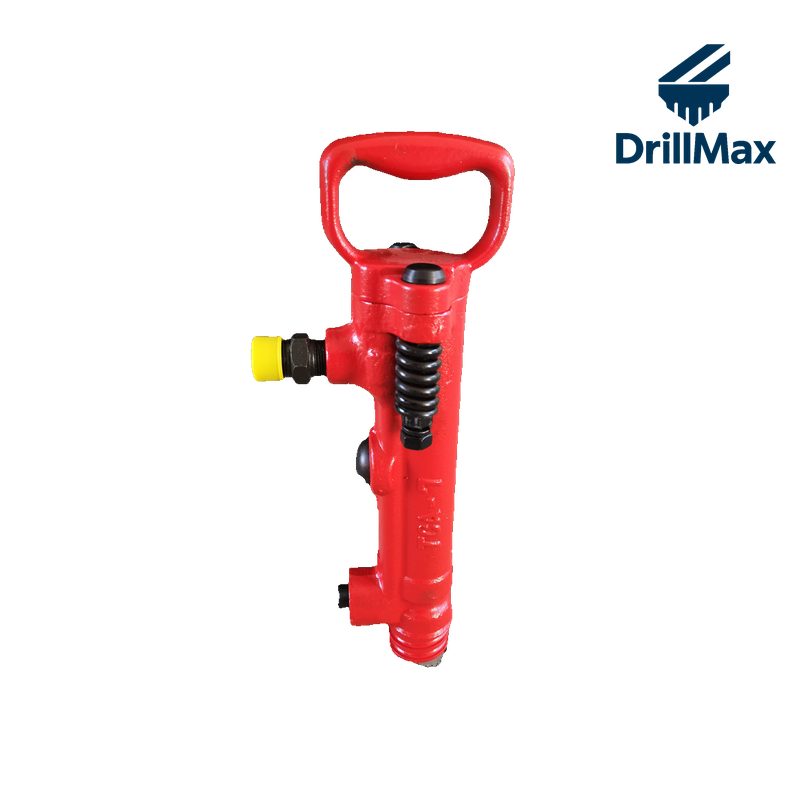

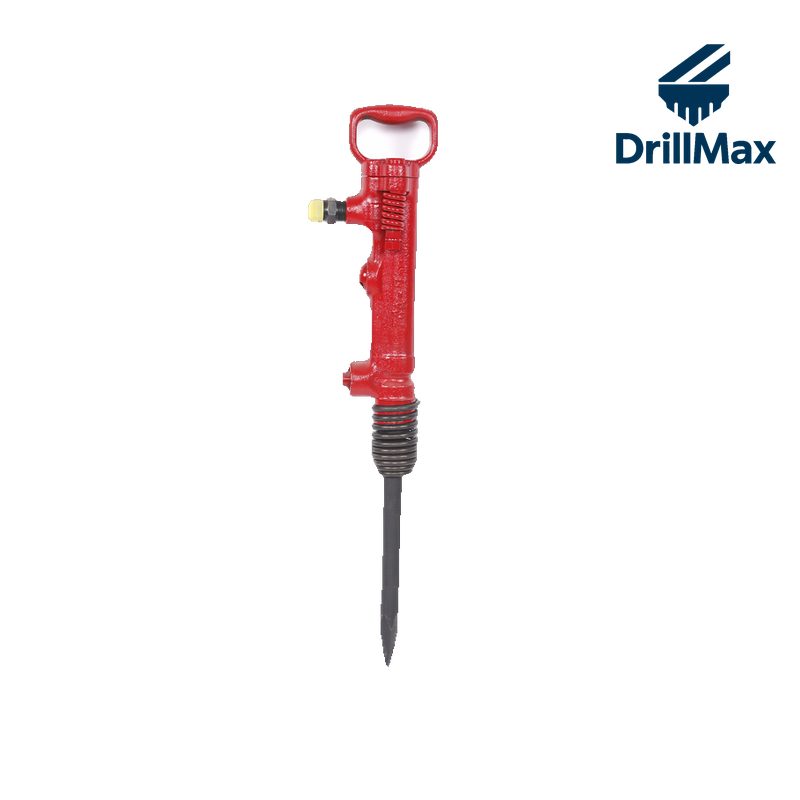

TCA-7 air pick is a light breaking tool driven by compressed air. It stops automatically after the object is broken and is widely used in mining coal, soft rock, digging pits for post brackets, digging slots, breaking concrete, frozen earth and installation engineering.
Weight
Net weight 7.2 kg (15.9 lb)
Impact
Impact frequency 1250 b.p.m
Air
Air consumption 1.0 m³/min
Specifications
| Parameter | Metric | U.S. |
|---|---|---|
| General | ||
| Weight | 7.2 kg | 15.9 lb |
| Length | 465 mm | 18.3 in |
| Working Air Pressure | — | — |
| Piston & impact | ||
| Cylinder Diameter | — | — |
| Piston Diameter | 35 mm | 1.38 in |
| Piston Stroke | 120 mm | 4.72 in |
| Percussive Frequency | 1250 b.p.m | 1250 b.p.m |
| Percussive Energy | — | — |
| Percussive Power | — | — |
| Breaking | ||
| Bit Head Size | R26 × 80 mm | R26 × 80 mm |
| Air system | ||
| Air Consumption | 1.0 m³/min | 1.0 m³/min |
| Air Inlet Size | — | — |
| Air Tube Inner Diameter | 19 mm | 0.75 in |
| Bit Fixation Style | — | — |
| Oil Feeder | — | — |
