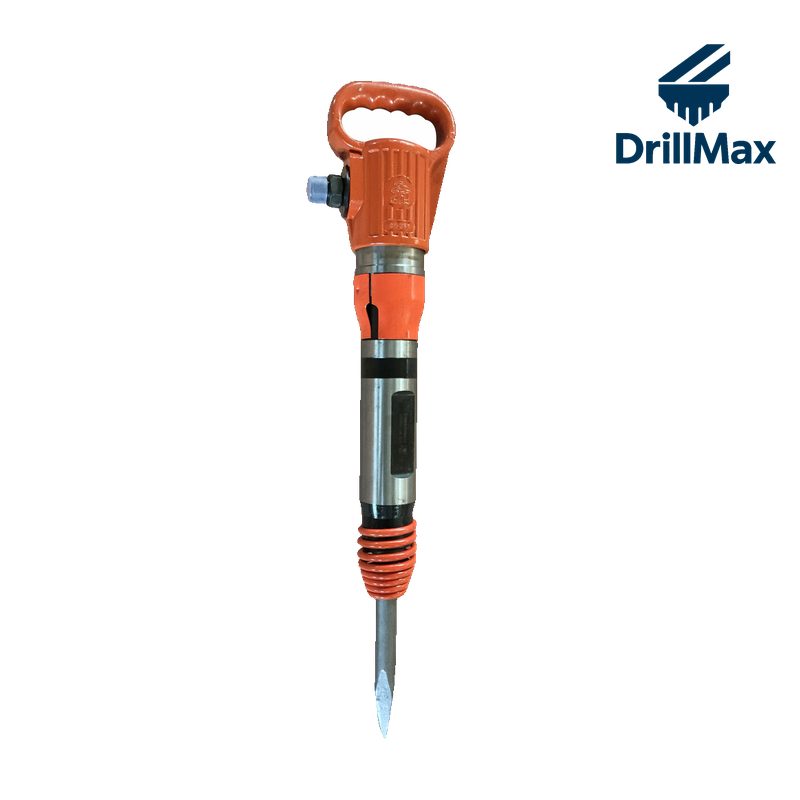

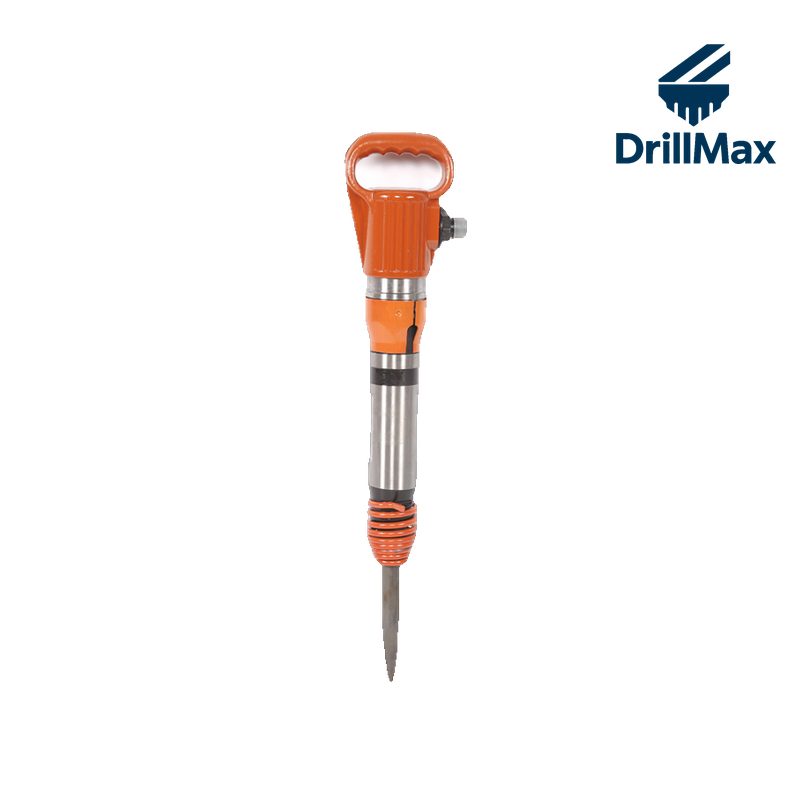

G10
Pneumatic Breakers & Picks
Weight: 10.5 kg
Air consumption: 26 L/s
Bit head: R24 × 70 mm
Air consumption: 26 L/s
Bit head: R24 × 70 mm
G10 air pick is suitable for crushing rock and concrete, especially solid concrete ground in city basic building projects, demolishing walls, cutting and crushing roads, and quarrying.
Weight
Net weight 10.5 kg (23.1 lb)
Impact
Impact energy ≥43 J
Air
Air consumption 26 L/s
Specifications
| Parameter | Metric | U.S. |
|---|---|---|
| General | ||
| Weight | 10.5 kg | 23.1 lb |
| Length | 575 mm | 22.6 in |
| Working Air Pressure | — | — |
| Piston & impact | ||
| Cylinder Diameter | — | — |
| Piston Diameter | — | — |
| Piston Stroke | — | — |
| Percussive Frequency | 16 Hz | 16 Hz |
| Percussive Energy | ≥43 J | ≥43 J |
| Percussive Power | — | — |
| Breaking | ||
| Bit Head Size | R24 × 70 mm | R24 × 70 mm |
| Air system | ||
| Air Consumption | 26 L/s | 26 L/s |
| Air Inlet Size | — | — |
| Air Tube Inner Diameter | 19 mm | 0.75 in |
| Bit Fixation Style | Spring clip | Spring clip |
| Oil Feeder | — | — |
