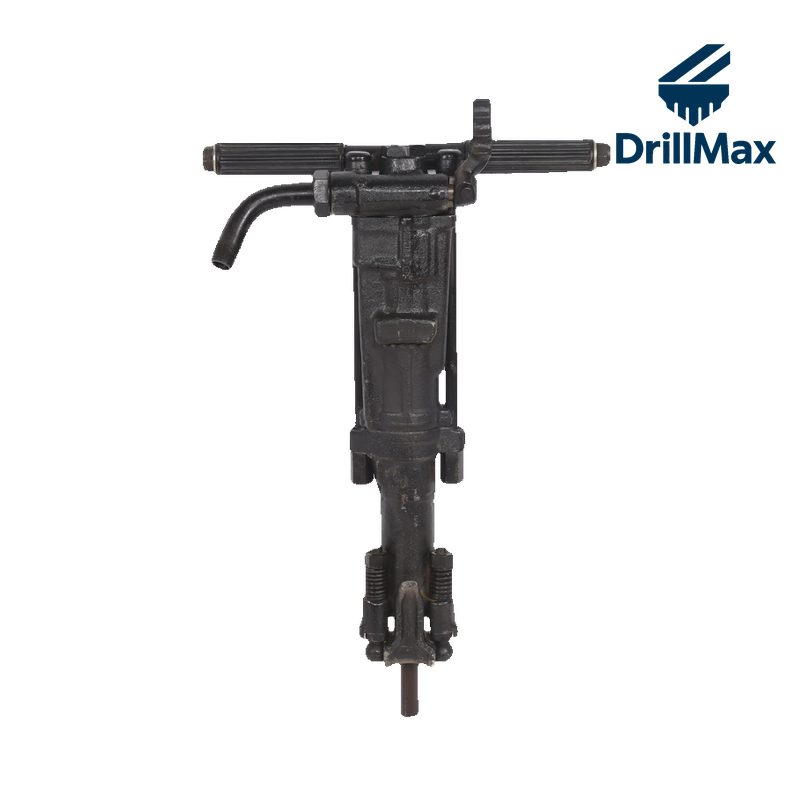

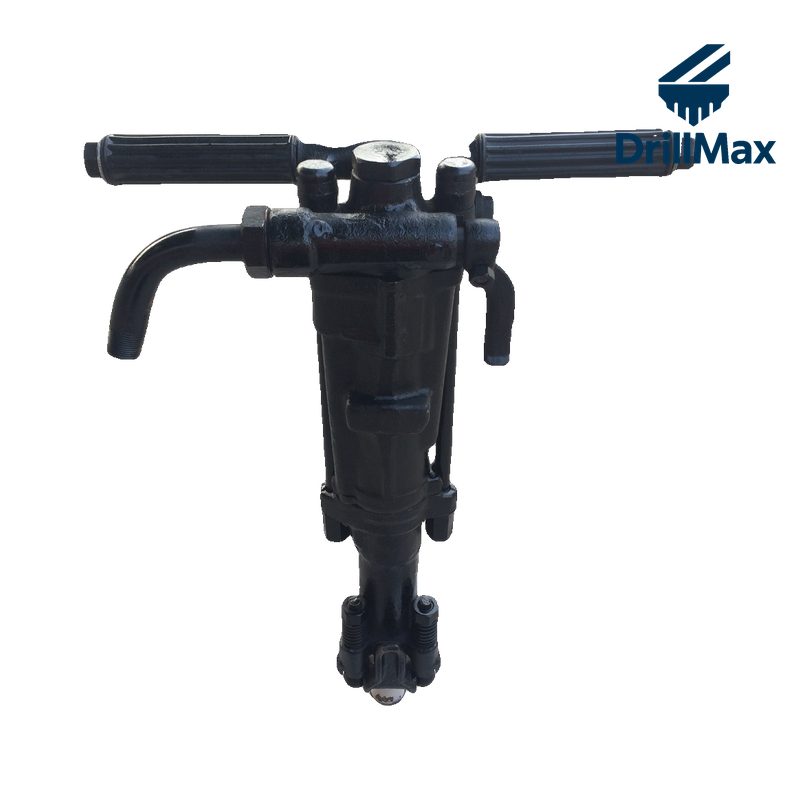

Y24C
Hand-held Rock Drills
Weight: 27 kg
Air consumption: 2.7 m³/min
Bit head: R22 × 108 mm
Air consumption: 2.7 m³/min
Bit head: R22 × 108 mm
Y24C chisel rock machine is a portable small-scale pneumatic type handle chisel rock machine based on safety save-oil technology, suitable for secondary blasting tasks, mines and tunnel digging.
Weight
Net weight 27 kg (59.5 lb)
Impact
Impact frequency —
Air
Working pressure 0.5–0.63 MPa (72.5–91.4 psi)
Specifications
| Parameter | Metric | U.S. |
|---|---|---|
| General | ||
| Weight | 27 kg | 59.5 lb |
| Length | 610 mm | 24.0 in |
| Working Air Pressure | 0.5–0.63 MPa | 72.5–91.4 psi |
| Working Water Pressure | — | — |
| Piston & impact | ||
| Cylinder Diameter | — | — |
| Piston Diameter | 66.7 mm | 2.63 in |
| Piston Stroke | 68 mm | 2.68 in |
| Percussive Frequency | — | — |
| Percussive Energy | — | — |
| Percussive Power | — | — |
| Drilling / breaking | ||
| Boreholes Diameter | 32–46 mm | 1.26–1.81 in |
| Drilled Holes Depth | 5 m | 16.4 ft |
| Bit Head Size | R22 × 108 mm | R22 × 108 mm |
| Revolution | — | — |
| Trechod Diameter | — | — |
| Air & water system | ||
| Air Consumption | 2.7 m³/min | 2.7 m³/min |
| Air Inlet Size | 19 mm | 0.75 in |
| Air Tube Inner Diameter | — | — |
| Water Pipe Inner Diameter | — | — |
| Bit Fixation Style | — | — |
| Oil Feeder | — | — |
