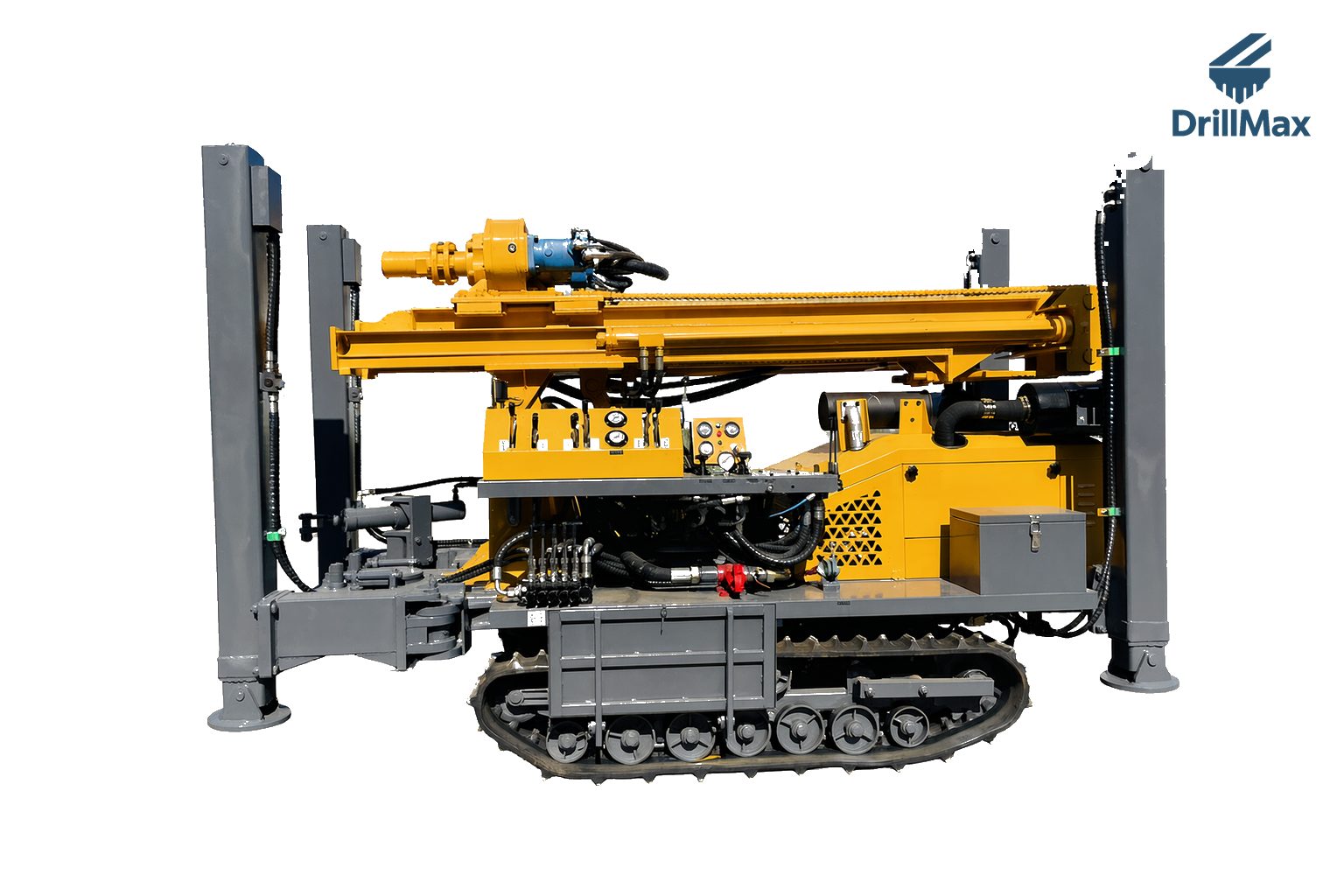

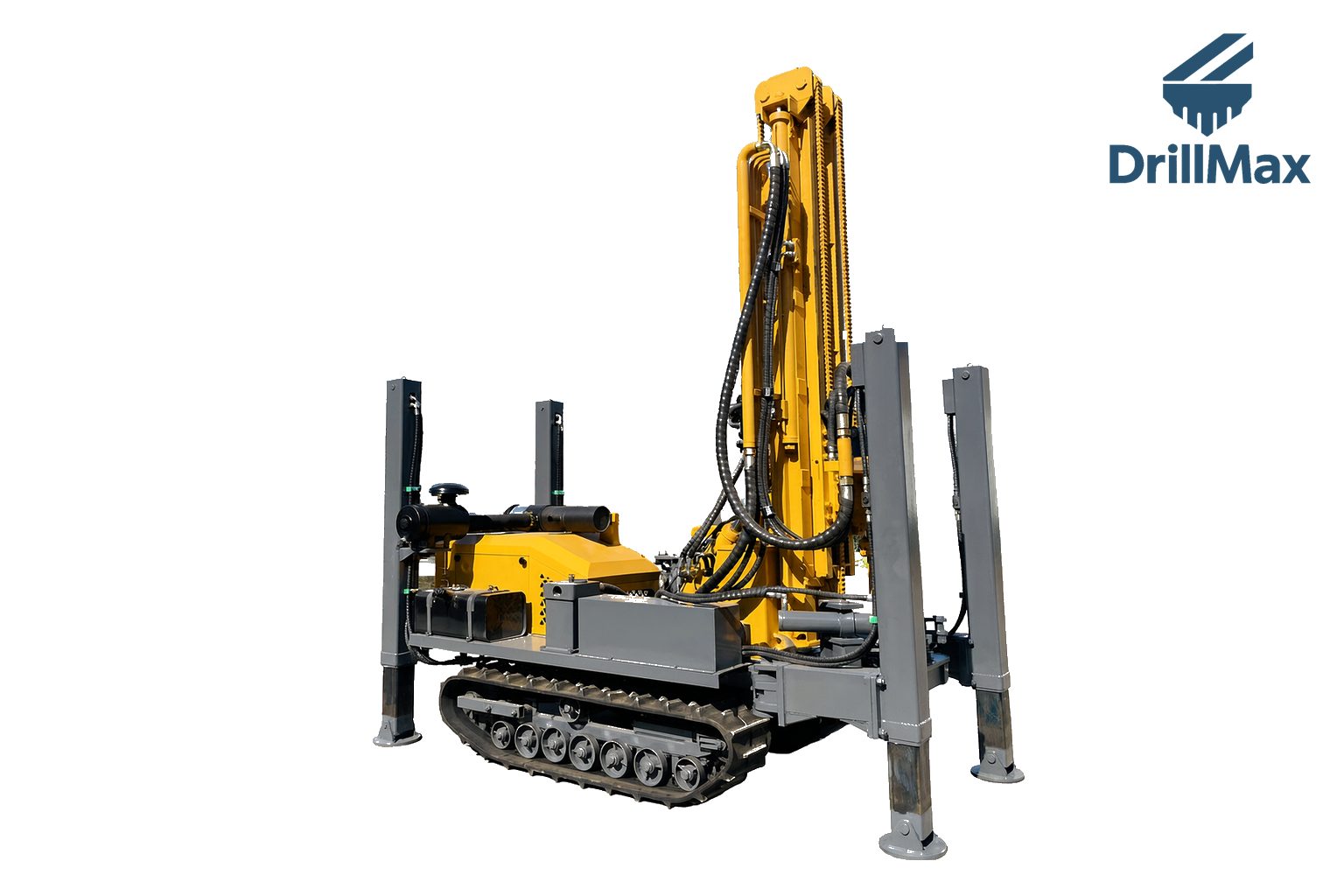

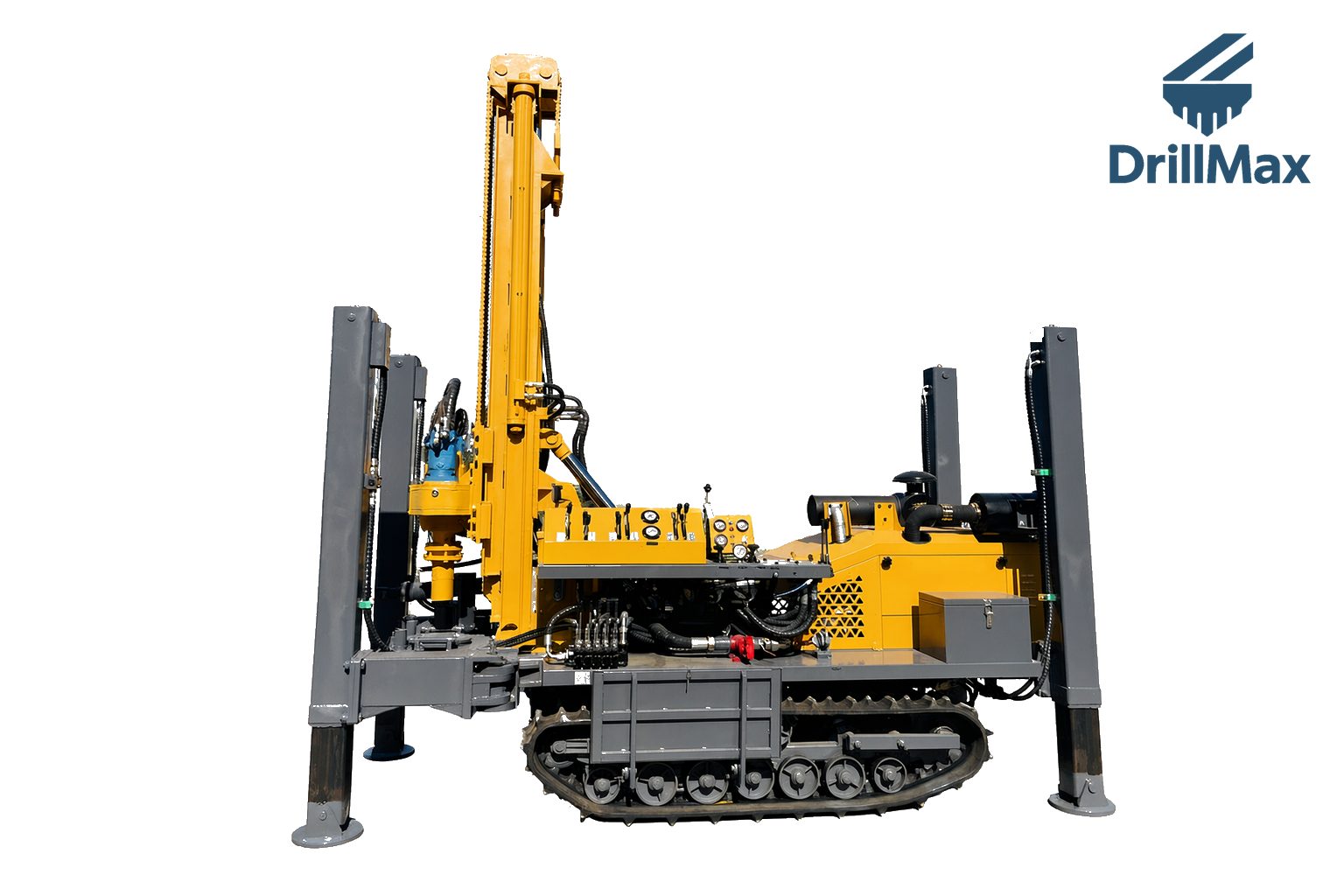

DM-180WD
Pneumatic water well drill rig — drill depth 180 m, 55 kW, working air pressure 1.7-2.5 MPa.
Drill depth: 180 m
Weight: 4.5 T
Engine: Quanchai 55 kW
Weight: 4.5 T
Engine: Quanchai 55 kW
Depth
Drilling depth up to 180 m (591 ft)
Power
Quanchai 55 kW (73.8 hp) engine
Air
Working air pressure 1.7-2.5 MPa (247-363 psi)
Specifications
| Parameter | Metric | U.S. |
|---|---|---|
| Drilling capacity | ||
| Drill Depth | 180 m | 591 ft |
| Hole Diameter | 140-254 mm | 5.51-10.0 in |
| Drill Pipe Diameter | Φ76Φ89 mm | Φ2.99Φ3.50 in |
| Drill Pipe Length | 1.5 / 2.0 / 3.0m m | 4.92 / 6.56 / 9.84m ft |
| One-time Advance Length | 3.3 m | 10.8 ft |
| Power & rotation | ||
| Engine Brand | Quanchai | Quanchai |
| Engine Power | 55 kW | 73.8 hp |
| Swing Torque | 3200-4600 N.m | 2360-3393 lbf·ft |
| Swing Speed | 45-70 rpm | 45-70 rpm |
| Feed & mobility | ||
| Rig Lifting Force | 12 T | 26455 lb |
| Winch Hoisting Force | — | — |
| Fast Feed Speed | 40 m/min | 131 ft/min |
| Rapid Rise Speed | 20 m/min | 65.6 ft/min |
| Travel Speed | 2.5 km/h | 1.55 mph |
| Gradeability | 30 ° | 30 ° |
| Penetration Rate | 10-35 m/h | 32.8-115 ft/h |
| Air system | ||
| Working Air Pressure | 1.7-2.5 MPa | 247-363 psi |
| Air Consumption | 17-31 m3/min | 600-1095 cfm |
| Dimensions & weight | ||
| Weight | 4.5 T | 9921 lb |
| Loading Width | 2.4 m | 7.87 ft |
| High-leg Stroke | 1.4 m | 4.59 ft |
| Dimensions | 3950*1630*2250 mm | 156*64.2*88.6 in |
