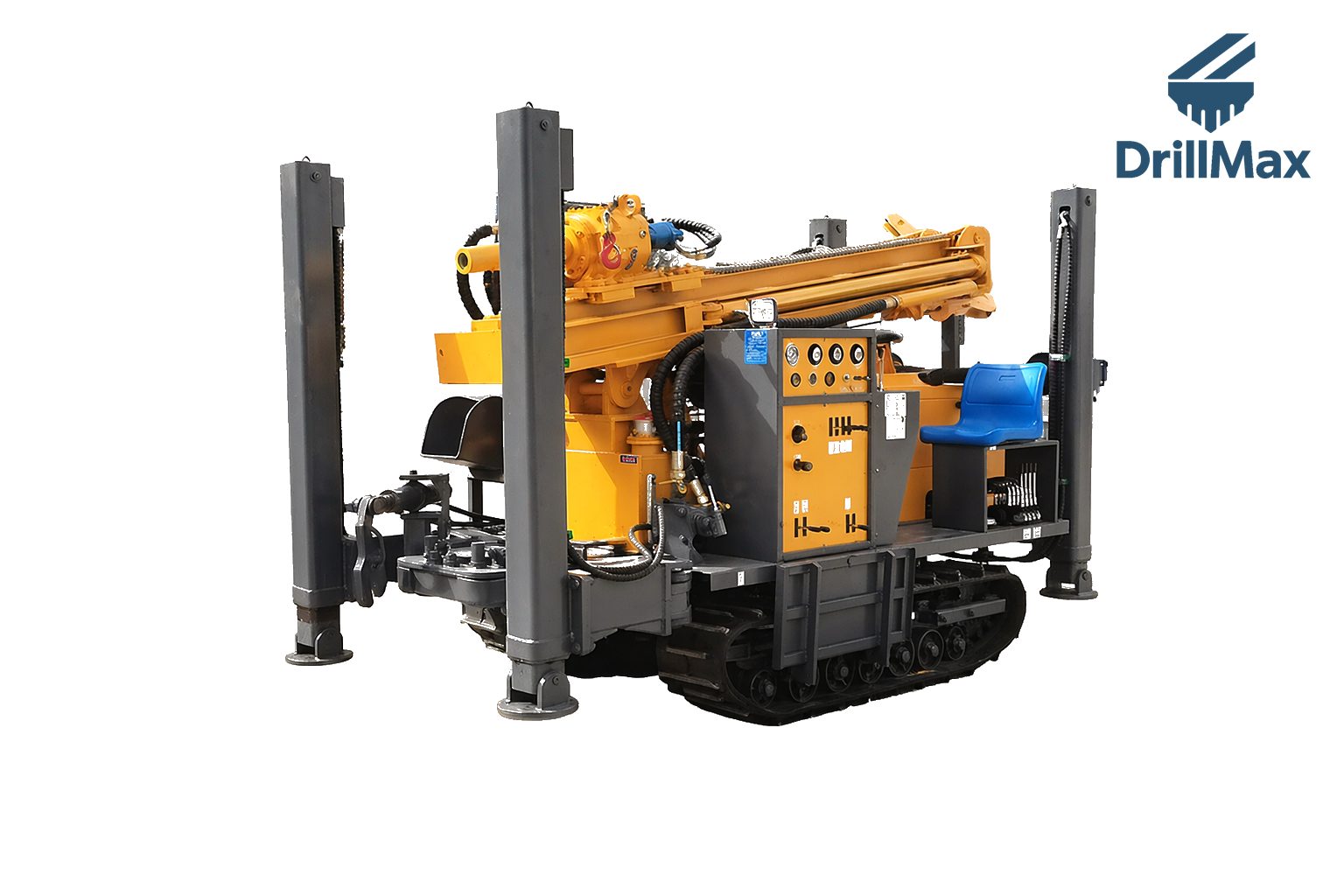

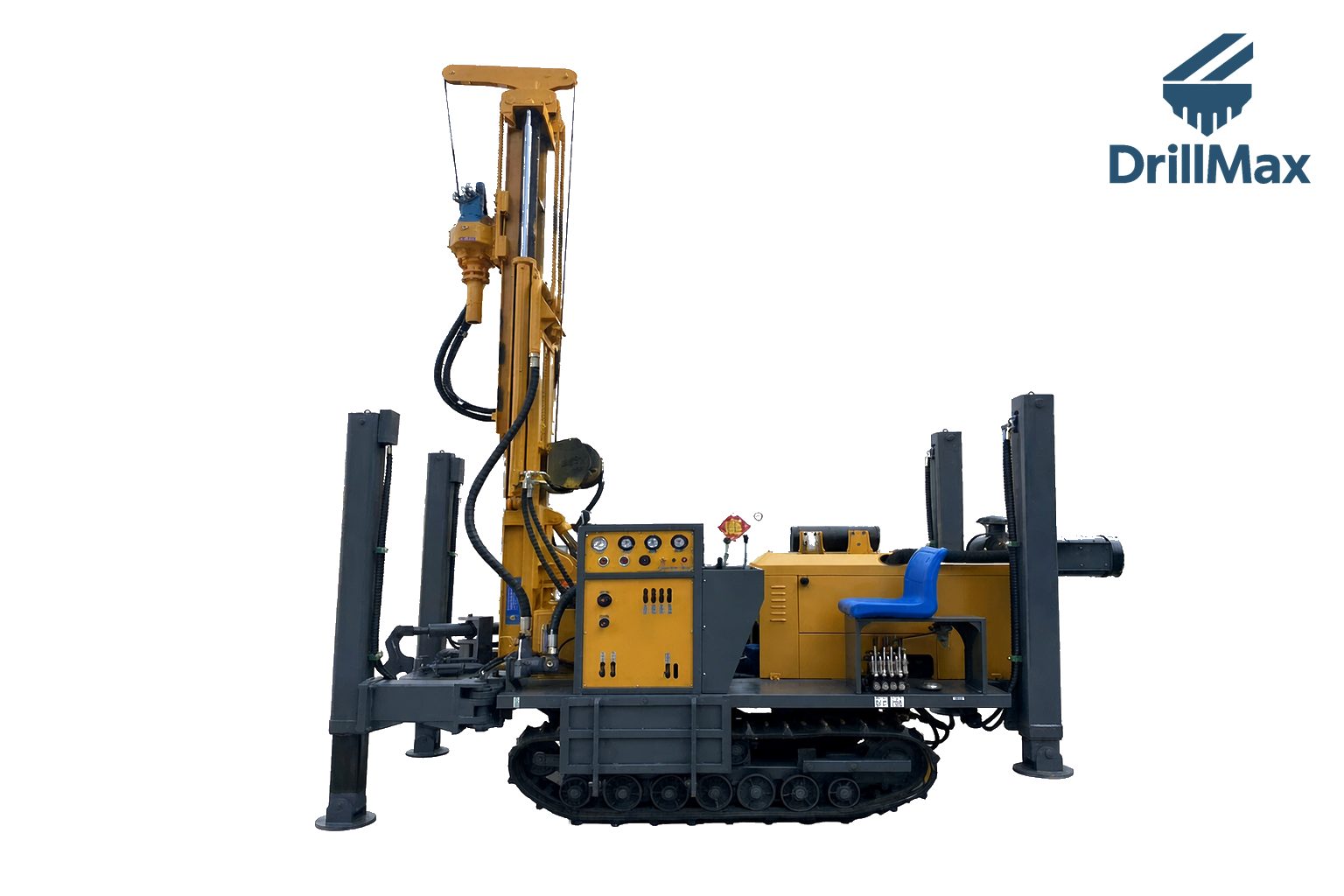

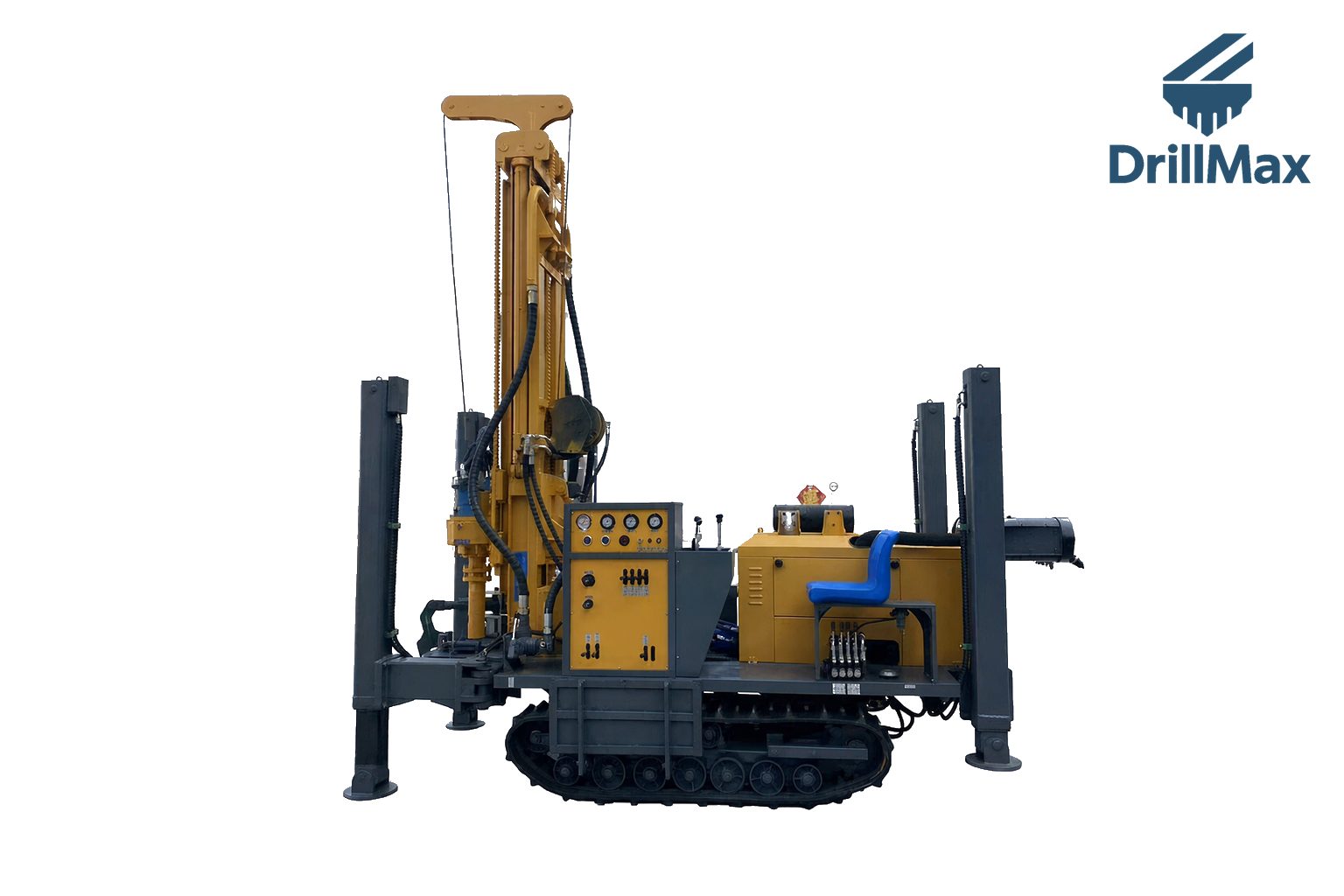

DM-200WD
Pneumatic water well drill rig — drill depth 200 m, 58 kW, working air pressure 1.7-2.5 MPa.
Drill depth: 200 m
Weight: 4.7 T
Engine: Yuchai 58 kW
Weight: 4.7 T
Engine: Yuchai 58 kW
Depth
Drilling depth up to 200 m (656 ft)
Power
Yuchai 58 kW (77.8 hp) engine
Air
Working air pressure 1.7-2.5 MPa (247-363 psi)
Specifications
| Parameter | Metric | U.S. |
|---|---|---|
| Drilling capacity | ||
| Drill Depth | 200 m | 656 ft |
| Hole Diameter | 140-254 mm | 5.51-10.0 in |
| Drill Pipe Diameter | Φ76Φ89 mm | Φ2.99Φ3.50 in |
| Drill Pipe Length | 1.5 / 2.0 / 3.0m m | 4.92 / 6.56 / 9.84m ft |
| One-time Advance Length | 3.3 m | 10.8 ft |
| Power & rotation | ||
| Engine Brand | Yuchai | Yuchai |
| Engine Power | 58 kW | 77.8 hp |
| Swing Torque | 3400-4700 N.m | 2508-3467 lbf·ft |
| Swing Speed | 45-70 rpm | 45-70 rpm |
| Feed & mobility | ||
| Rig Lifting Force | 13 T | 28660 lb |
| Winch Hoisting Force | 1.5 T | 3307 lb |
| Fast Feed Speed | 60 m/min | 197 ft/min |
| Rapid Rise Speed | 30 m/min | 98.4 ft/min |
| Travel Speed | 2.5 km/h | 1.55 mph |
| Gradeability | 30 ° | 30 ° |
| Penetration Rate | 10-35 m/h | 32.8-115 ft/h |
| Air system | ||
| Working Air Pressure | 1.7-2.5 MPa | 247-363 psi |
| Air Consumption | 17-31 m3/min | 600-1095 cfm |
| Dimensions & weight | ||
| Weight | 4.7 T | 10362 lb |
| Loading Width | 2.6 m | 8.53 ft |
| High-leg Stroke | 1.4 m | 4.59 ft |
| Dimensions | 3950*1750*2250 mm | 156*68.9*88.6 in |
